Metal Coated Mirrors:

Our optical mirrors or mirror substrates (uncoated) are available for use with light in the UV, VIS, and IR spectral regions. Optical mirrors with a metallic coating have high reflectivity over the widest spectral region, whereas mirrors with a broadband dielectric coating have a narrower spectral range of operation; the average reflectivity throughout the specified region is greater than 99%. Hot, cold, backside polished, elliptical, parabolic, concave, crystalline, and laser line dielectric-coated optical mirrors are available for more specialized applications.


Description

ParameterStandard Specification
MaterialOptical glasses, Fused Silica, Corning 7980
Dimension3 ~ 500mm
Dimension tolerance+/-0.01 ~ +/-0.2mm
Surface quality10-5 ~ 80-50
Parallelism<3 arc minutes
Flatness<1λ
Clear Aperture>90%
Chamfer0.3mm@45 degree
Coating

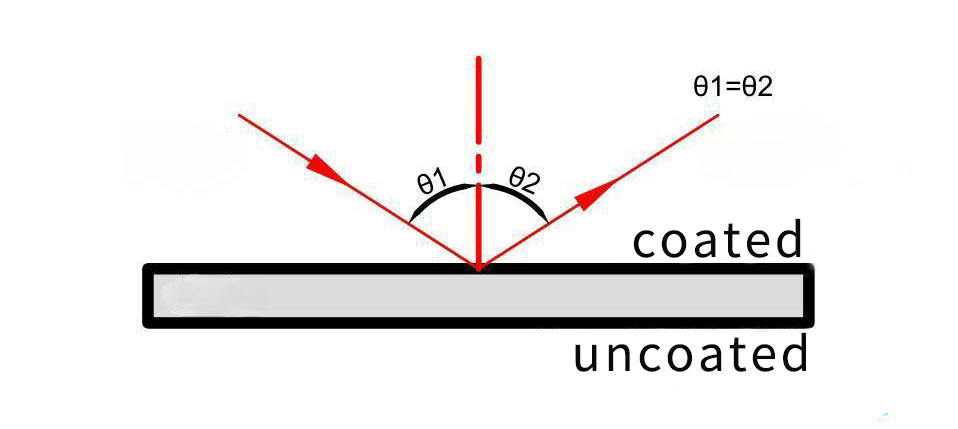

Metal coating on one surface, rear surface ground or inspection polished

Enhanced Aluminum: Ravg>90%@400-700nm

Protected Aluminum: Ravg>87%@400-1200nm

UV Protected Aluminum: Ravg>80%@250-700nm

Protected Silver: Ravg>95%@400-12000nm

Enhanced Silver: Ravg>98.5%@700-1100nm

Protected Gold: Ravg>98%@2000-12000nm

Damage Threshold>1J/cm2, 20ns, 20Hz, @1064nm
* Remark:Customized is available
