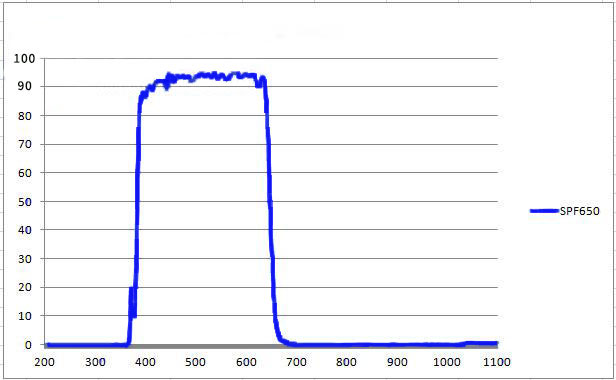

Short wave pass filters:

Shortpass filters provide a wide blocking bandwidth, high blocking depth, high transmission and sharp slope. They are widely used in fluorescence excitation spectrum measurement, Raman spectrum, spectral group and astronomical observation applications. When combining with our longpass filters, they can be used to set up variable bandwidth bandpass filters system. We also provide mounted filters which can be easily used in the optical system.


Description

Dimension Tolerance+0-0.1mm
Thickness Tolerance+/-0.1mm
Surface quality60-40
TWEλ/4@633nm
Clear Aperture>90%
Wavelength range200-1100nm
Angel of incidence0 degree
Peak Transmission>90%
Blocking depthOD 4
Parallelism<1 arc minute
Chamfer0.3mm@45 degree
* Remark:Customized is available
